Current position:Home > Products > Oblique Guide Spindle Unit Series > Details

TK56-500 Inclined guide rail turret machine with tailstock lathe

Product Features

1.High precision spindle

This machine adoptshigh rigidity headboard. The front bearing of the main shaft is double-row cylindrical roller bearingplus thrust angularcontactball bearing, and the rear bearing also adopts double-row cylindrical roller bearing. This type of spindle bearingconfiguration makes theentire spindle group have high rigidity, which is suitable for high stifness and high precision CNClathes reguired,for powerful cutting.


2.Bed structure

The use of high-rigidity cast iron, resin sand process, the overall structure ofthe bed with a smooth chip, compact structure, beautifulshape and so on.


3.Turret way

The novel servo turret ensures a repeated tool change error of±3um , ensures high-speed and accurate tool change ,and can significantly save processing time.


4.High precision feed

Feed the entire servo drive shaft, the drive motor and the Taiwan $yntec System,the Taiwan Yintalinear guide, ensure machining precisionand long time precision into the shaft to repeat positioning accuracy of<±5um.


5.Efficient processing

The X axis can move quickly up to 15 meters / minute, the Z axis can move up to 25 meters / minute, high-precision hydraulic rotary cylinderprecision Taiwan thousand island chuck, increased toughness material cutting and strength Ability to cut.


6. Strong cooling

High-power strong cooling pump, improved parts cutting, according to customer reguirements can be installed 1-4 cooling tube, cooling performance.

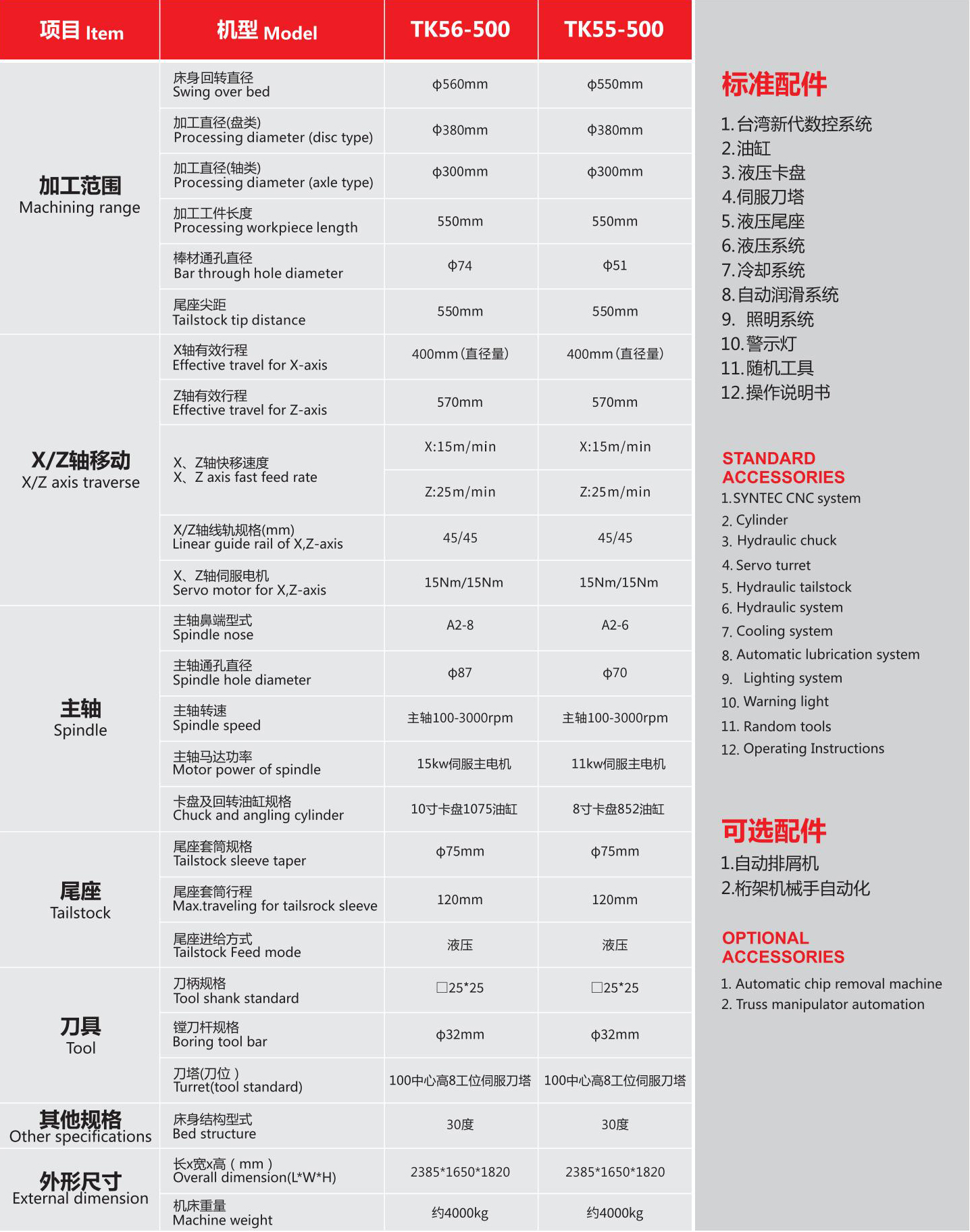

Parameter configuration
